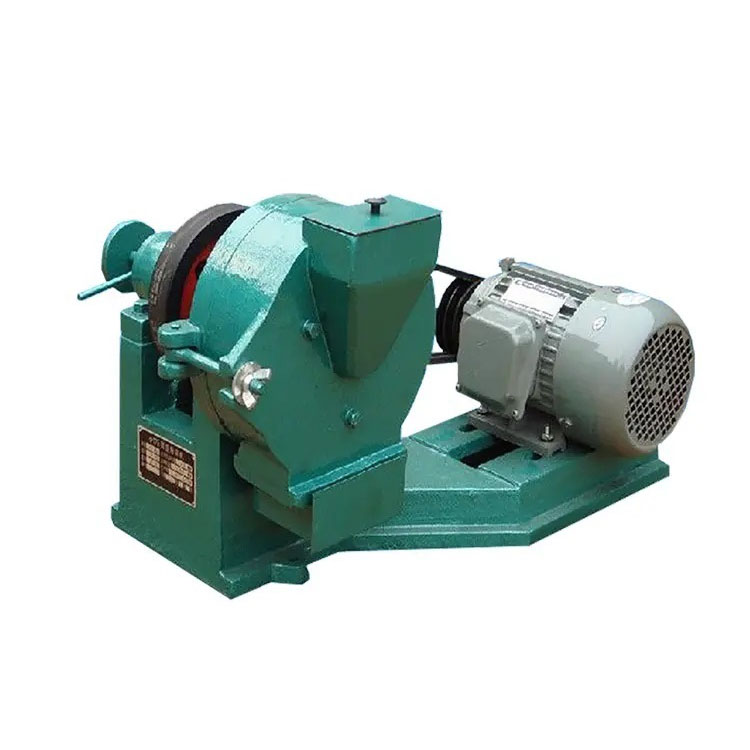

φ 175 disc crusher φ175圓盤粉碎機
時間:2022-03-28 15:28:13 點擊次數:84

1、 175 details of disc crusher:

175 disc crusher has the advantages of convenient operation, good dust-proof performance and beautiful appearance. It is mainly used for medium grade ore and cement clinker. It is one of the main equipment in laboratories or laboratories in metallurgy, geology, building materials, chemical industry and other industries.

2、 Working principle of 175 disc crusher

The motor drives the belt pulley to rotate, and the belt pulley drives the movable grinding disc on the main shaft to rotate, so that the movable grinding disc and the fixed grinding disc produce relative rotation movement, so that the materials between the two discs are crushed and fall into the blanking box from the gap between the two discs. The discharge particle size can be controlled by adjusting the gap between the two discs by adjusting the hand wheel.

3、 Main technical parameters of 175 disc crusher

1. Grinding disc diameter: φ 175mm;

2. Maximum particle size of feed: ≤ 4mm;

3. Discharge particle size: ≤ 0.15mm;

4. Productivity: 25kg / h;

5. Spindle speed: 900r / min;

6. Working power supply: ac380v50hz1 1Kw;

7. Overall dimension: 730x500x510mm;

8. Weight: 105kg.

4、 175 composition structure of disc crusher

175 disc crusher is mainly composed of support, bearing seat, grinding seat, moving grinding disc, fixed grinding disc, movable grinding cover, belt pulley and motor.

5、 Use and maintenance of 175 disc crusher

1. Commissioning: before commissioning, open the front cover to see whether the rotating belt rotates flexibly. If it is not flexible, loosen the adjusting hand wheel, and then rotate the belt until it is flexible. Check whether all fasteners are fastened and lock the butterfly nut before commissioning. Materials shall not be put during commissioning.

2. Use: open the plug on the movable grinding cover, loosen the butterfly nut and adjust the hand wheel. From the plug hole, the gap between the two grinding discs should not be too large, but too tight will also cause difficulty in starting. Lock the butterfly nut, plug the plug, add materials from the feeding port of the movable grinding cover, and turn on the power supply. If it is found that the discharge particle size cannot meet the requirements, the hand wheel shall be adjusted until the requirements are met. When working, both butterfly nuts should be locked, otherwise it will affect the use. Cut off the power supply after work and take out the materials from the blanking box. Replace the sample. In order to make the test data accurate, loosen the butterfly nut II, open the movable grinding cover, and brush the residue in the working chamber with a brush.

3. Maintenance: open the upper cover of the whole machine, screw out two guide screws, inject lubricating oil inward, and then screw in the two guide screws (Note: do not pre tighten the two bearing sleeves, otherwise the lubrication of the bearing sleeve is not flexible, and the clearance between the two grinding discs cannot be adjusted by adjusting the hand wheel). Close the cover. When the movable grinding disc needs to be replaced, loosen the three screws fixing the movable grinding disc with a wrench.


一、175圓盤粉碎機的詳細資料:

175圓盤粉碎機操作方便,防塵性能好,外表美觀。主要用于中等度礦石及水泥熟料,是冶金、地質、建材、化工等行業實驗室或化驗室的主要設備之一。

二、175圓盤粉碎機工作原理

由電機帶動皮帶輪旋轉,皮帶輪帶動主軸上的動磨盤旋轉,使動磨盤和定磨盤產生相對旋轉運動,使在兩盤中間的物料粉碎,并從兩盤縫隙中落在落料箱中。出料粒度可通過調節手輪來調節兩盤的間隙達到控制粒度目的。

三、175圓盤粉碎機主要技術參數

1、磨盤直徑:φ175mm;

2、給料最大粒度:≤4mm;

3、出料粒度:≤0.15mm;

4、生產率:25kg/h;

5、主軸轉速:900r/min;

6、工作電源:AC380V50Hz1.1Kw;

7、外形尺寸:730x500x510mm;

8、重量:105kg。

四、175圓盤粉碎機組成結構

175圓盤粉碎機主要由支架、軸承座、研磨座、動磨盤、定磨盤、活動研磨蓋、皮帶輪及電機組成。

五、175圓盤粉碎機使用及保養

1、試車:試車前打開前蓋,看轉動皮帶是否轉動靈活,如不靈活應放松調節手輪,然后再轉動皮帶直至靈活。檢查各緊固件是否緊固,鎖緊蝶形螺母,方可試車,試車時不可放物料。

2、使用:打開活動研磨蓋上的塞子,松開蝶形螺母,調節手輪,從塞孔中看兩磨盤間隙不要太大,但太緊也會造成啟動困難。鎖緊蝶形螺母,塞緊塞子,把物料從活動研磨蓋的入料口加入,接通電源工作。若發現出料粒度達不到要求,應調節手輪,直到滿足要求為止。工作時兩個蝶形螺母都要鎖緊,否則影響使用。工作結束切斷電源,從落料箱中取出物料。調換試樣,為了使化驗數據準確,可松開蝶形螺母Ⅱ,打開活動研磨蓋,用刷子刷凈工作室內殘留物。

3、保養:打開整機的上罩殼,擰出兩導向螺釘,向內注入潤滑油即可,然后將兩導向螺釘旋入(注意,不可預緊兩軸承套、,否則軸承套潤滑不靈活,調節手輪無法調節兩磨盤間隙)。蓋好上罩殼。須更換動磨盤時,用扳手松開三只固定動磨盤的螺釘即可。
